Kubernetes 매니페스트 및 Helm 패키징

목표

애플리케이션을 Kubernetes 에서 실행하기 위해
컨테이너 이미지 기반으로 Kubernetes 리소스 정의 & Helm Chart로 패키징 함

진행 내용 요약

Kubernetes 배포

리소스	용도
Namespace	서비스 격리
Deployment	frontend / backend
Service	내부 통신
Ingress	외부 접속
ConfigMap	환경 변수
Secret	DB 비밀번호
PV / PVC	DB 데이터 저장
StorageClass	볼륨 관리
StatefulSet	PostgreSQL
HPA	자동 스케일링
Probe	health check
ServiceAccount	권한 관리
RBAC	접근 제어
QoSClass	리소스 관리

네트워크 및 외부 노출

Internet
   │
Ingress
   │
Service
   │
Frontend Pod
   │
Backend Service
   │
Backend Pod
   │
Redis / PostgreSQL

Ingress Controller (nginx)
MetalLB (external IP)

데이터 스토리지

Redis
- Deployment
- Service
PostgreSQL
- StatefulSet
- PersistentVolume
- PersistentVolumeClaim

Helm 차트 뼈대 만들기

values.yaml 작성

ConfigMap / Secret 작성

PostgreSQL / Redis 작성

Backend / Frontend 작성

Service / Ingress / HPA / RBAC 작성

디렉토리 구조 생성 mkdir -p helm/tetris/templates
Helm 차트 기본 파일 생성 helm/tetris/Chart.yaml

apiVersion: v2
name: tetris
description: Tetris game service on Kubernetes
type: application
version: 0.1.0
appVersion: "1.0.0"

helm/tetris/values.yaml

namespace: game

frontend:
  name: frontend
  replicaCount: 1
  image:
    repository: DOCKER_ID/tetris-frontend
    tag: "1.0"
    pullPolicy: IfNotPresent
  service:
    type: ClusterIP
    port: 80
    targetPort: 80

backend:
  name: backend
  replicaCount: 2
  image:
    repository: DOCKER_ID/tetris-backend
    tag: "1.0"
    pullPolicy: IfNotPresent
  service:
    type: ClusterIP
    port: 8000
    targetPort: 8000
  resources:
    requests:
      cpu: "200m"
      memory: "256Mi"
    limits:
      cpu: "500m"
      memory: "512Mi"

redis:
  name: redis
  replicaCount: 1
  image:
    repository: redis
    tag: "7"
    pullPolicy: IfNotPresent
  service:
    type: ClusterIP
    port: 6379
    targetPort: 6379

postgres:
  name: postgres
  image:
    repository: postgres
    tag: "16"
    pullPolicy: IfNotPresent
  service:
    port: 5432
    targetPort: 5432
  storage:
    size: 5Gi
    storageClassName: local-storage

config:
  postgresHost: postgres
  postgresPort: "5432"
  postgresDb: tetris
  redisHost: redis
  redisPort: "6379"

secret:
  postgresUser: tetris
  postgresPassword: tetris123

ingress:
  enabled: true
  className: nginx
  host: tetris.local
  frontendPath: /
  backendPath: /api
  websocketPath: /ws

hpa:
  enabled: true
  minReplicas: 1
  maxReplicas: 5
  averageUtilization: 70

helm/tetris/templates 아래

namespace.yaml
configmap.yaml
secret.yaml
postgres-service.yaml
postgres-statefulset.yaml
redis-deployment.yaml
redis-service.yaml
backend-serviceaccount.yaml
backend-role.yaml
backend-rolebinding.yaml
backend-deployment.yaml
backend-service.yaml
frontend-deployment.yaml
frontend-service.yaml
ingress.yaml
backend-hpa.yaml

순서대로 생성

ConfigMap / Secret 먼저 있어야 앱 설정 주입 가능
PostgreSQL / Redis 있어야 Backend 의존성 연결 가능
Backend 살아야 Frontend가 API 호출 가능
마지막 Ingress / HPA / RBAC

## namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: {{ .Values.namespace }}

ns 지정 안할거면 사용
- 현재 game 로 직접 만들고 지정할거라 사용 X
- 추후 -n game 옵션으로 네임스페이스 지정하여 사용 혹은 현재 네임스페이스를 변경하여 사용

configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: tetris-config
  namespace: {{ .Values.namespace }}
data:
  POSTGRES_HOST: {{ .Values.config.postgresHost | quote }}
  POSTGRES_PORT: {{ .Values.config.postgresPort | quote }}
  POSTGRES_DB: {{ .Values.config.postgresDb | quote }}
  REDIS_HOST: {{ .Values.config.redisHost | quote }}
  REDIS_PORT: {{ .Values.config.redisPort | quote }}

secret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: tetris-secret
  namespace: {{ .Values.namespace }}
type: Opaque
stringData:
  POSTGRES_USER: {{ .Values.secret.postgresUser | quote }}
  POSTGRES_PASSWORD: {{ .Values.secret.postgresPassword | quote }}

postgres-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ .Values.postgres.name }}
  namespace: {{ .Values.namespace }}
spec:
  clusterIP: None
  selector:
    app: {{ .Values.postgres.name }}
  ports:
    - port: {{ .Values.postgres.service.port }}
      targetPort: {{ .Values.postgres.service.targetPort }}

postgres-statefulset.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: {{ .Values.postgres.name }}
  namespace: {{ .Values.namespace }}
spec:
  serviceName: {{ .Values.postgres.name }}
  replicas: 1
  selector:
    matchLabels:
      app: {{ .Values.postgres.name }}
  template:
    metadata:
      labels:
        app: {{ .Values.postgres.name }}
    spec:
      containers:
        - name: {{ .Values.postgres.name }}
          image: "{{ .Values.postgres.image.repository }}:{{ .Values.postgres.image.tag }}"
          imagePullPolicy: {{ .Values.postgres.image.pullPolicy }}
          ports:
            - containerPort: {{ .Values.postgres.service.targetPort }}
          env:
            - name: POSTGRES_DB
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: POSTGRES_DB
            - name: POSTGRES_USER
              valueFrom:
                secretKeyRef:
                  name: tetris-secret
                  key: POSTGRES_USER
            - name: POSTGRES_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: tetris-secret
                  key: POSTGRES_PASSWORD
          volumeMounts:
            - name: postgres-storage
              mountPath: /var/lib/postgresql/data
  volumeClaimTemplates:
    - metadata:
        name: postgres-storage
      spec:
        accessModes: ["ReadWriteOnce"]
        storageClassName: {{ .Values.postgres.storage.storageClassName }}
        resources:
          requests:
            storage: {{ .Values.postgres.storage.size }}

redis-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Values.redis.name }}
  namespace: {{ .Values.namespace }}
spec:
  replicas: {{ .Values.redis.replicaCount }}
  selector:
    matchLabels:
      app: {{ .Values.redis.name }}
  template:
    metadata:
      labels:
        app: {{ .Values.redis.name }}
    spec:
      containers:
        - name: {{ .Values.redis.name }}
          image: "{{ .Values.redis.image.repository }}:{{ .Values.redis.image.tag }}"
          imagePullPolicy: {{ .Values.redis.image.pullPolicy }}
          ports:
            - containerPort: {{ .Values.redis.service.targetPort }}

redis-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ .Values.redis.name }}
  namespace: {{ .Values.namespace }}
spec:
  selector:
    app: {{ .Values.redis.name }}
  ports:
    - port: {{ .Values.redis.service.port }}
      targetPort: {{ .Values.redis.service.targetPort }}
  type: {{ .Values.redis.service.type }}

backend-serviceaccount.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: {{ .Values.backend.name }}-sa
  namespace: {{ .Values.namespace }}

backend-role.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: {{ .Values.backend.name }}-role
  namespace: {{ .Values.namespace }}
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "list"]

backend-rolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: {{ .Values.backend.name }}-rolebinding
  namespace: {{ .Values.namespace }}
subjects:
  - kind: ServiceAccount
    name: {{ .Values.backend.name }}-sa
    namespace: {{ .Values.namespace }}
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: {{ .Values.backend.name }}-role

backend-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Values.backend.name }}
  namespace: {{ .Values.namespace }}
spec:
  replicas: {{ .Values.backend.replicaCount }}
  selector:
    matchLabels:
      app: {{ .Values.backend.name }}
  template:
    metadata:
      labels:
        app: {{ .Values.backend.name }}
    spec:
      serviceAccountName: {{ .Values.backend.name }}-sa
      containers:
        - name: {{ .Values.backend.name }}
          image: "{{ .Values.backend.image.repository }}:{{ .Values.backend.image.tag }}"
          imagePullPolicy: {{ .Values.backend.image.pullPolicy }}
          ports:
            - containerPort: {{ .Values.backend.service.targetPort }}
          env:
            - name: POSTGRES_HOST
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: POSTGRES_HOST
            - name: POSTGRES_PORT
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: POSTGRES_PORT
            - name: POSTGRES_DB
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: POSTGRES_DB
            - name: REDIS_HOST
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: REDIS_HOST
            - name: REDIS_PORT
              valueFrom:
                configMapKeyRef:
                  name: tetris-config
                  key: REDIS_PORT
            - name: POSTGRES_USER
              valueFrom:
                secretKeyRef:
                  name: tetris-secret
                  key: POSTGRES_USER
            - name: POSTGRES_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: tetris-secret
                  key: POSTGRES_PASSWORD
          resources:
            requests:
              cpu: {{ .Values.backend.resources.requests.cpu | quote }}
              memory: {{ .Values.backend.resources.requests.memory | quote }}
            limits:
              cpu: {{ .Values.backend.resources.limits.cpu | quote }}
              memory: {{ .Values.backend.resources.limits.memory | quote }}
          readinessProbe:
            httpGet:
              path: /health
              port: {{ .Values.backend.service.targetPort }}
            initialDelaySeconds: 10
            periodSeconds: 5
          livenessProbe:
            httpGet:
              path: /health
              port: {{ .Values.backend.service.targetPort }}
            initialDelaySeconds: 20
            periodSeconds: 10

backend-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ .Values.backend.name }}
  namespace: {{ .Values.namespace }}
spec:
  selector:
    app: {{ .Values.backend.name }}
  ports:
    - port: {{ .Values.backend.service.port }}
      targetPort: {{ .Values.backend.service.targetPort }}
  type: {{ .Values.backend.service.type }}

frontend-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Values.frontend.name }}
  namespace: {{ .Values.namespace }}
spec:
  replicas: {{ .Values.frontend.replicaCount }}
  selector:
    matchLabels:
      app: {{ .Values.frontend.name }}
  template:
    metadata:
      labels:
        app: {{ .Values.frontend.name }}
    spec:
      containers:
        - name: {{ .Values.frontend.name }}
          image: "{{ .Values.frontend.image.repository }}:{{ .Values.frontend.image.tag }}"
          imagePullPolicy: {{ .Values.frontend.image.pullPolicy }}
          ports:
            - containerPort: {{ .Values.frontend.service.targetPort }}
          readinessProbe:
            httpGet:
              path: /
              port: {{ .Values.frontend.service.targetPort }}
            initialDelaySeconds: 10
            periodSeconds: 5
          livenessProbe:
            httpGet:
              path: /
              port: {{ .Values.frontend.service.targetPort }}
            initialDelaySeconds: 20
            periodSeconds: 10

frontend-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ .Values.frontend.name }}
  namespace: {{ .Values.namespace }}
spec:
  selector:
    app: {{ .Values.frontend.name }}
  ports:
    - port: {{ .Values.frontend.service.port }}
      targetPort: {{ .Values.frontend.service.targetPort }}
  type: {{ .Values.frontend.service.type }}

ingress.yaml

{{- if .Values.ingress.enabled }}
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: tetris-ingress
  namespace: {{ .Values.namespace }}
  annotations:
    nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
    nginx.ingress.kubernetes.io/websocket-services: {{ .Values.backend.name | quote }}
spec:
  ingressClassName: {{ .Values.ingress.className }}
  rules:
    - host: {{ .Values.ingress.host }}
      http:
        paths:
          - path: {{ .Values.ingress.frontendPath }}
            pathType: Prefix
            backend:
              service:
                name: {{ .Values.frontend.name }}
                port:
                  number: {{ .Values.frontend.service.port }}
          - path: {{ .Values.ingress.backendPath }}
            pathType: Prefix
            backend:
              service:
                name: {{ .Values.backend.name }}
                port:
                  number: {{ .Values.backend.service.port }}
          - path: {{ .Values.ingress.websocketPath }}
            pathType: Prefix
            backend:
              service:
                name: {{ .Values.backend.name }}
                port:
                  number: {{ .Values.backend.service.port }}
{{- end }}

backend-hpa.yaml

{{- if .Values.hpa.enabled }}
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: {{ .Values.backend.name }}-hpa
  namespace: {{ .Values.namespace }}
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: {{ .Values.backend.name }}
  minReplicas: {{ .Values.hpa.minReplicas }}
  maxReplicas: {{ .Values.hpa.maxReplicas }}
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: {{ .Values.hpa.averageUtilization }}
{{- end }}

helm/tetris/templates

namespace.yaml
configmap.yaml
secret.yaml
postgres-service.yaml
postgres-statefulset.yaml
redis-deployment.yaml
redis-service.yaml
backend-serviceaccount.yaml
backend-role.yaml
backend-rolebinding.yaml
backend-deployment.yaml
backend-service.yaml
frontend-deployment.yaml
frontend-service.yaml
ingress.yaml
backend-hpa.yaml

생성

helm

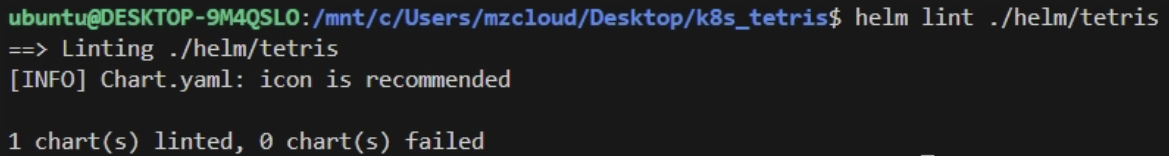

Helm Chart 구조 검사 helm lint ./helm/tetris → 1 chart(s) linted, 0 chart(s) failed

530

Helm 템플릿 렌더링 확인
- 실제 kubernetes YAML로 변환되는지 확인

helm template tetris ./helm/tetris

helm values.yaml + templates/*.yaml 을 합쳐 실제 Kubernetes YAML을 출력함
실제 배포 명령어

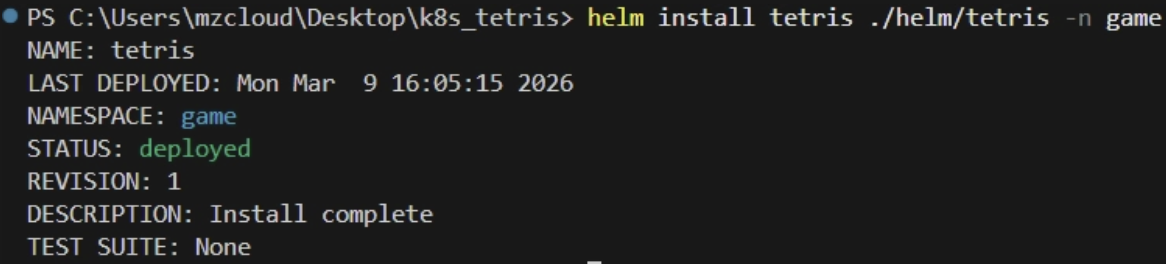

- helm install tetris ./helm/tetris -n game
  - -n game : ns 지정
- 이미 존재할 시 → helm upgrade --install tetris ./helm/tetris

503

배포 확인
- helm list → Helm Release 확인
- kubectl get ns → Namespace 확인
- kubectl get all -n game → 전체 리소스 확인
- kubectl get pvc -n game → DB 볼륨 확인
- kubecetl get ingress -n game → Ingress 확인
- kubectl get hpa -n game → HPA 확인
- kubectl get pods -n game → Pod 상태 확인
- kubectl logs deployment/backend -n game → Backend 로그 확인 (문제 발생 시)
- kubectl logs postgres-0 -n game → Postgres 로그 확인 (문제 발생 시)
삭제
- helm uninstall tetris → Helm release 삭제

번외 1. 로컬에서 vm kubernetes 연결

VM 의 kubeconfig를 로컬로 가져와서 사용

구조

Windows VSCode
   ├ kubectl
   ├ helm
   └ kubeconfig (VM cluster 연결)

        │
        ▼

VM Kubernetes Cluster

VM에서 kubeconfig 가져오기

cp VM 에서 sudo cat /etc/kubernetes/admin.conf 내용 복사

로컬에 kubeconfig 만들기

windows 에서 C:\Users\내_ID\.kube 폴더 생성 → config 파일 생성 후 붙여넣기

kubeconfig 수정

기존 config 내용 server: https://127.0.0.1:6443 → Control Plane IP로 변경 : server: https://192.168.80.110:6443

로컬에 kubectl 설치

if) Windows PowerShell 이면 winget install Kubernetes.kubectl or 직접 다운로드 : https://kubernetes.io/docs/tasks/tools/

확인 : kubectl get nodes

같은 vs code 터미널이더라도
- wsl 우분투 터미널인 경우 → /home/USER/.kube/config
- PowerShell → C:\Users\USER\.kube\config
- 경로가 다르므로 config 파일 경로 잘 생각해야함

번외 2. Helm 설치

Helm 공식 설치 스크립트 사용

curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash

확인 : helm version

cd

Tree

Kubernetes 매니페스트 및 Helm 패키징

진행 내용 요약

helm

번외 1. 로컬에서 vm kubernetes 연결

번외 2. Helm 설치

그래프 뷰

목차

백링크
